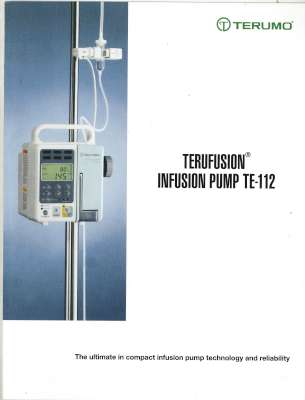

Infusion Pump TE-112 Terumo

Infusion Pump TE-112 Terumo

Spesifikasi Infusion Pump TE-112 Terumo :

Special functions
• ‘ Keep vein open’ function ( After the delivery limit has been reached,
delivery continues at 1 mL/ h for a set flow rate of e 1mL/ h: or at the delivery
rate setting < 1 mL/ h.)
• Tubing clamp function ( When the door is opened, tubing is automaticallly
clamped.)
• Volume delivered clear function
• Time remaining display
• Battery capacity indicator ( 3 levels)
• Adjustable display brightness ( Can be switched to 2 levels)
• Adjustable buzzer volume ( 3 levels)
• operation history function ( Storage/ display of operation history)
• Standby function
• repeat alarm function
• Start reminder function
The following functions can be selected via internal switches:
• Volume memory function
• Delivery rate 1 mL/ h step
Operating conditions
Temperature: + 5 to + 40 ° C, humidity: 20 to 90%
Storage conditions
Temperature: – 20 to + 45 ° C, humidity: 10 to 95% ( No condensation)
Power supply
AC 100 – 240 V, 50 Hz DC12 – 15 V
Internal Nickel-Cadmium battery
operating time approx. 3 hours
Conditions: new battery, delivery rate: 25 mL/ h, temperature: 25 ° C
with the power off, after 15-hour charging
Power consumption
28 VA ( AC 100 – 240 V) , 11 W ( DC power)
Classification
Class I & internal power supply: Type CF/ IPX1 Continuous operation
Dimensions
100 ( W) x 215 ( H) x 208 ( D) mm ( excl. protrusions)
Weight
Approx. 3.6 kg ( Te-171) , 3.7 kg ( Te-172)
