MAPADA 6300 UV Spectrophotometer
MAPADA 6300 UV SPECTROPHOTOMETER
DOUBLE BEAM SPECTROPHOTOMETER, MAPADA UV-6300 STAND ALONE
Manufacturer : Shanghai MAPADA Instruments Co., Ltd
ISO 9001: 2000 and CE- Certified TUV Rheinland GmbH, Germany
MAPADA UV- 6000 Series provides excellent performance for measurements in the range of 190nm to 1100nm. They are suitable for pharmaceutical, biochemical and clinical lab applications as well as routine applications such as quantitative analysis, kinetics, spectrum scanning, multiple components and DNA/ protein. All Mapada spectrophotometer features high performance sealed optics mounted on a stable machined platform. The innovative optical layout and state of art mono-chromator with high grade blazed holographic grating ensure accuracy. Its integrated design assures long term stability and durability.
All instruments provide excellent performance for measurements.
UV-6300 has 1.0nm fixed bandwidth, the double beam detectors measure sample and reference respectively and simultaneously to optimize measurement accuracy.
System Benefits
• Easy operation and reliable optical system ensure fast, accurate results
• Small size saves valuable lab space
• Versatile accessories enhance sampling and increase productivity
• Low cost to stretch your budget
• The time required to analyze samples more quickly and in a lot more analysis
• There is little maintenance
FEATURES
• Double beam
• Sealed and solvent-resistant tactile keypad with alpha-numeric entry for user file names and user entry of units
• Pre-aligned deuterium lamp for easy lamp replacement
• Lamp usage and the status of the lamps can be monitored.
• Powerful built-in software including sophisticated utility programs
• Full print-out of graphs and tables of results with popular printers, such as HP or Epson DeskJet
• Real-time clock for date and time stamping of results
• Data Download-to-PC software for stand-alone models ( optional)
• Machine can be controlled by application software through USB port to PC connection. ( optional)
Technical Data Specifications:
Model UV-6300
Wavelength Range 190-1100 nm
Wavelength Accuracy ± 0.3 nm
Photometric Range 0-200% T , -0.3 – 3A, 0-9999 Conc
Photometric Accuracy d 0.3% T or ± 0.002A@ 1A
Photometric Noise 0.0005 A
Photometric Drif or Stability ± 0.001 A/ hour at 500 nm
Spectral Bandwidth 1.0 nm
Stray Light d0.05% T at 220 and 340 nm
Display 5 Inches LCD ( 320* 240 dots )
Source Lamp Tungsten Halogen lamp & Deuterium lamp
Detector Hamamatsu Photodiode
Output USB Port Parallel Port ( printer )
Optical System Double Beam, Grating 1200 lines/ mm
Wavelength Repeatability 0.3 nm
Scanning speed Hi, Med, Low, Max 3000 nm/ min
Wavelength Setting AUTO
Photometric Repeatability 0.15% T
Baseline Flatness ± 0.001A ( 200-1000 nm)
Photometric Mode Absorbance, % Transmittance, Concentration or Quantitative
Keypad 22 Membrane keypad Sealed and solvent-resistant tactile keypad
Standard Cell Holder Standard 10mm single cell holder ( 2 pcs )
Sample Compartment Standard 10mm path-length cuvette
Power Requirement AC 110/ 60Hz or AC 220/ 50Hz
Dimensions ( W* D* H) 600* 450* 200mm
Weight 22kg
]]>
Chlorophyll-Meter-SPAD-502-Plus
Chlorophyll Meter
SPAD-502Plus
The SPAD-502Plus enables quick, easy measurement of the chlorophyll content of plant leaves without damaging the leaf. Chlorophyll content is one indicator of plant health, and can be used to optimize the timing and quantity of applying additional fertilizer to provide larger crop yields of higher quality with lower environmental load.
Measurement method : Optical density difference at two wavelengths
Measurement area : 2 mm×3 mm
Subject thickness : 1.2 mm maximum
Subject insertion depth : 12 mm (with stopper having position adjustable from 0 to 6 mm)
Light source : 2 LED elements
Receptor : 1 SPD (silicon photodiode)
Display : LCD panel showing 4-digit measurement value (values shown to first decimal place) and 2-digit number of measurements; Trend graph of values in memory can also be shown.
Display range : -9.9 to 199.9 SPAD units
Memory function : Memory capacity for up to 30 values; Calculation/display of average of data in memory also possible
Power source : 2 AA-size alkaline batteries
Battery life : More than 20,000 measurements (when using new alkaline batteries under Konica Minolta test conditions)
Minimum interval between measurements : Approx. 2 seconds
Accuracy : Within ±1.0 SPAD units (for SPAD value between 0.0 and 50.0 under normal temperature/humidity)
“*” added to display when measurement exceeds 50.0 SPAD units
Repeatability : Within ±0.3 SPAD units
(SPAD value between 0.0 and 50.0 with no change in sample position)
Dimensions : 78 (W) ×164 (H) ×49 (D) mm
Weight : 200 g (excluding batteries)
Kata Kunci Banyak Dicari :
- harga alat klorofil meter
- klorofil meter
- jual klorofil meter
- harga klorofil meter
- beli alat spad
- harga Chlorophyl Meter
- harga alat ukur klorofil
- harga alat pengukur klorofil
- chlorophyll plus malang
- review alat chlorophyll meter SPAD-502Plus
Binder CO2 Incubator
The STANDARD CO2 incubator. C150
The BINDER C 150 is the fitting CO2 incubator for routine applications for cell cultivation: contamination-free thanks to 180 °C hot-air sterilization, this CO2 incubator is reliably pH-stable thanks to the drift-free FPI infrared measuring system. In addition, the BINDER C 150 distinguishes itself by its high temperature precision with excellent dynamics and eliminates the risk of condensation when storing tissue cultures – even in high humidity.
Advantages:
- Hot air sterilization at 180 °C
- Seamless, deep-drawn inner chamber made of stainless steel
- Unique BINDER technology (patented air jacket system, etc.)
Performance characteristics:
|
Kata Kunci Banyak Dicari :
- harga inkubator besar binder
Binder Vacuum drying oven for non-flammable solvents VD23, VD53, VD115
A BINDER vacuum drying oven of the VD series is impressive while gently drying with its homogeneous temperature distribution. The patented expansion shelf technology from BINDER ensures optimal heat transfer. The shelves are easy to position where required and the inner chamber of the vacuum drying oven is easy to clean.
Advantages:
- Maximum occupational safety with one-of-a-kind safety concept
- Fast, condensation-free drying processes
- Homogeneous specimen drying
Performance characteristics:
|
Vacuubrand Diaphagm pumps
Chemistry diaphragm pumps and -pumping systems
Typical applications for chemistry diaphragm pumps include evacuating chemically aggressive gases and vapors from such equipment as rotary evaporators, vacuum drying cabinets and centrifugal concentrators. Chemistry diaphragm pumps from VACUUBRAND feature uncompromising chemistry designs. Their construction with fluoropolymers makes them very resistant to chemical vapors from inlet to exhaust and very tolerant to condensates. Our two-, three- and four-stage pumps also have a gas ballast valve that provides continuous purge with minimal impact on ultimate vacuum when working with condensable vapors. Pumping chambers are hermetically separated from the drive system ensuring long lifetimes of mechanical parts. Most importantly, diaphragm pumps are oil-free, for vastly reduced service demands compared with oil-sealed pumps. They eliminate the cost of water and its contamination well-known from water-jet aspirators, and the waste-oil disposal of rotary vane pumps.
- PTFE sandwich diaphragms and valves made of perfluoro elastomer or PTFE
- internal tubing and fittings made of PTFE/ETFE/ECTFE compounds
- exceptional diaphragm lifetimes with ultra-durable PTFE sandwich design
- head cover and clamping disc made of fluoro compounds with stability core for unsurpassed long-term performance
- very long service intervals for low lifetime cost-of-ownership
- patented new drive system for extra quiet, ultra-low-vibration operation (NT)
- patented new valve mounting system to simplify service access (NT)
- smooth surfaces for easy cleaning (NT)
- new sealing system provides reduced leakage rates for improved ultimate vacuum (NT)
Product comparison
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
|
 |
 |
|||||||||||||
Chemistry diaphragm pumpME 1C |
- | 100 | - | 0.7 | 0.85 |  |
- | |
- | - | - | - | - | - | - | - |
Chemistry diaphragm pumpME 2C NT |
- | 70 | - | 2.1 | 2.4 | |
- | |
- | - | - | - | - | - | - | - |
Chemistry diaphragm pumpME 4C NT |
- | 70 | - | 3.9 | 4.3 | |
- | |
- | - | - | - | - | - | - | - |
Chemistry vacuum systemME 4C NT +2AK |
ME 4C NT | 70 | - | 3.9 | 4.3 | |
- | |
2 | - | - | - | - | - | - | - |
Chemistry diaphragm pumpME 8C NT |
- | 70 | - | 7.1 | 7.8 | |
- | |
- | - | - | - | - | - | - | - |
Chemistry vacuum systemME 8C NT +2AK |
ME 8C NT | 70 | - | 7.1 | 7.8 | |
- | |
2 | - | - | - | - | - | - | - |
Chemistry diaphragm pumpME 16C NT |
- | 70 | 100 | 16.3 | 18.4 | |
- | |
- | - | - | - | - | - | - | - |
Chemistry vacuum systemME 16C NT +EK |
ME 16C NT | 70 | 100 | 16.3 | 18.4 | |
- | |
- | |
- | - | - | - | - | - |
VARIO® chemistry pumpME 16C NT
|
- | 70 | 100 | 19.3 | 19.3 | |
- | |
- | - | - | - | - | |
|
- |
VARIO® chemistry pumping unitPC 3016 NT
|
ME 16C NT VARIO | 70 | 100 | 19.3 | 19.3 | |
- | |
|
|
- | - | - | |
|
- |
Chemistry diaphragm pumpMZ 1C |
- | 12 | 20 | 0.75 | 0.9 | |
- | |
- | - | - | - | - | - | - | - |
Chemistry diaphragm pumpMZ 2C NT |
- | 7 | 12 | 2.0 | 2.3 | |
- | |
- | - | - | - | - | - | - | - |
Chemistry vacuum systemMZ 2C NT +2AK |
MZ 2C NT | 7 | 12 | 2.0 | 2.3 | |
- | |
2 | - | - | - | - | - | - | - |
Chemistry vacuum systemMZ 2C NT
|
MZ 2C NT | 7 | 12 | 2.0 | 2.3 | |
- | |
|
|
- | - | - | - | - | - |
Chemistry vacuum systemMZ 2C NT
|
MZ 2C NT | 7 | 12 | 2.0 | 2.3 | |
- | |
|
|
|
2 | - | - | - | - |
Chemistry vacuum systemMZ 2C NT
|
MZ 2C NT | 7 | 12 | 2.0 | 2.3 | |
- | |
|
- | - | |
- | - | - | - |
Chemistry pumping unitPC 101 NT |
MZ 2C NT | 7 | 12 | 2.0 | 2.3 | |
- | |
|
|
- | |
- | - | - | - |
Chemistry pumping unitPC 500 LAN NT |
MZ 2C NT | 7 | 12 | 2.0 | 2.3 | |
- | |
|
|
- | - | |
- | - | |
Chemistry pumping unitPC 510 NT |
MZ 2C NT | 7 | 12 | 2.0 | 2.3 | |
- | |
|
|
- | - | |
- | |
- |
Chemistry pumping unitPC 511 NT |
MZ 2C NT | 7 | 12 | 2.0 | 2.3 | |
- | |
|
|
|
|
|
- | |
- |
Chemistry pumping unitPC 520 NT |
MZ 2C NT | 7 | 12 | 2.0 | 2.3 | |
- | |
|
|
|
- | |
- | 2 | - |
VARIO® chemistry diaphragm pumpMZ 2C NT VARIO |
- | 7 | 12 | 2.8 | 2.8 | |
- | |
- | - | - | - | - | |
|
- |
VARIO® chemistry pumping unitPC 3002 VARIO |
MZ 2C NT VARIO | 7 | 12 | 2.8 | 2.8 | |
- | |
|
|
- | - | - | |
|
- |
Chemistry diaphragm pumpMD 1C |
- | 2 | 4 | 1.3 | 1.5 | |
- | |
- | - | - | - | - | - | - | - |
Chemistry vacuum systemMD 1C +AK+EK |
MD 1C | 2 | 4 | 1.3 | 1.5 | |
- | |
|
|
- | - | - | - | - | - |
Chemistry pumping unitPC 3001 basic |
MD 1C VARIO-SP | 2 | 4 | 2.0 | 2.0 | |
- | |
- | - | - | - | - | |
- | - |
VARIO® chemistry pumping unitPC 3001 VARIOpro
|
MD 1C VARIO-SP | 2 | 4 | 2.0 | 2.0 | |
- | |
|
|
- | - | - | |
|
- |
VARIO® chemistry pumping unitPC 3001 VARIOpro
|
MD 1C VARIO-SP | 2 | 4 | 2.0 | 2.0 | |
- | |
|
|
- | - | - | |
|
- |
VARIO® chemistry pumping unitPC 3001 VARIOpro
|
MD 1C VARIO-SP | 2 | 4 | 2.0 | 2.0 | |
- | |
|
|
- | - | - | |
|
- |
Chemistry diaphragm pumpMD 4C NT |
- | 1.5 | 3 | 3.4 | 3.8 | |
- | |
- | - | - | - | - | - | - | - |
Chemistry diaphragm pumpMD 4CRL NT |
- | 1.5 | - | 3.4 | 3.8 | |
- | |
- | - | - | - | - | - | - | - |
Chemistry vacuum systemMD 4C NT +2AK |
MD 4C NT | 1.5 | 3 | 3.4 | 3.8 | |
- | |
2 | - | - | - | - | - | - | - |
Chemistry vacuum systemMD 4C NT
|
MD 4C NT | 1.5 | 3 | 3.4 | 3.8 | |
- | |
|
|
- | - | - | - | - | - |
Chemistry vacuum systemMD 4C NT
|
MD 4C NT | 1.5 | 3 | 3.4 | 3.8 | |
- | |
|
|
|
2 | - | - | - | - |
Chemistry pumping unitPC 201 NT |
MD 4C NT | 1.5 | 3 | 3.4 | 3.8 | |
- | |
|
|
- | |
- | - | - | - |
Chemistry pumping unitPC 600 LAN NT |
MD 4C NT | 1.5 | 3 | 3.4 | 3.8 | |
- | |
|
|
- | - | |
- | - | |
Chemistry pumping unitPC 610 NT |
MD 4C NT | 1.5 | 3 | 3.4 | 3.8 | |
- | |
|
|
- | - | |
- | |
- |
Chemistry pumping unitPC 611 NT |
MD 4C NT | 1.5 | 3 | 3.4 | 3.8 | |
- | |
|
|
|
|
|
- | |
- |
Chemistry pumping unitPC 620 NT |
MD 4C NT | 1.5 | 3 | 3.4 | 3.8 | |
- | |
|
|
|
- | |
- | 2 | - |
VARIO® chemistry diaphragm pumpMD 4C NT VARIO |
- | 1.5 | 3 | 4.6 | 4.6 | |
- | |
- | - | - | - | - | |
|
- |
VARIO® chemistry pumping unitPC 3004 VARIO |
MD 4C NT VARIO | 1.5 | 3 | 4.6 | 4.6 | |
- | |
|
|
- | - | - | |
|
- |
Chemistry diaphragm pumpMD 12C NT |
- | 2 | 4 | 11.1 | 12.3 | |
- | |
- | - | - | - | - | - | - | - |
Chemistry vacuum systemMD 12C NT +EK |
MD 12C NT | 2 | 4 | 11.1 | 12.3 | |
- | |
- | |
- | - | - | - | - | - |
Chemistry vacuum systemMD 12C NT
|
MD 12C NT | 2 | 4 | 11.1 | 12.3 | |
- | |
|
|
- | - | - | - | - | - |
Chemistry diaphragm pumpMD 12C NT
|
- | 1.5 | 3 | 12.9 | 12.9 | |
- | |
- | - | - | - | - | |
|
- |
VARIO® chemistry pumping unitPC 3012 NT
|
MD 12C NT VARIO | 1.5 | 3 | 12.9 | 12.9 | |
- | |
|
|
- | - | - | |
|
- |
VARIO® chemistry pumping unitPC 3003 VARIO |
MV 2C NT VARIO | 0.6 | 2 | 2.8 | 2.8 | |
- | |
|
|
- | - | - | |
|
- |
Chemistry diaphragm pumpMV 10C |
- | 0.9 | 9 | 7.0 | 7.5 | |
- | |
- | - | - | - | - | - | - | - |
MV 10C NT |
- | 0.9 | 1.5 | 9.5 | 10.7 | |
- | |
- | - | - | - | - | - | - | - |
Chemistry vacuum systemMV 10C NT +EK |
MV 10C NT | 0.9 | 1.5 | 9.5 | 10.7 | |
- | |
- | |
- | - | - | - | - | - |
VARIO® chemistry pumping unitMV 10C NT
|
- | 0.6 | 1.2 | 11.6 | 11.6 | |
- | |
- | - | - | - | - | |
|
- |
VARIO® chemistry pumping unitPC 3010 NT
|
MV 10C NT VARIO | 0.6 | 1.2 | 11.6 | 11.6 | |
- | |
|
|
- | - | - | |
|
- |
Roots pumping unitRP 35C VARIO |
MD 12C | 0.1 | 0.9 | 40 | 40 | |
- | - | - | - | - | - | - | |
- | - |
Roots pumping unitRP 12C |
MD 4C | 0.2 | 0.4 | 12 | 14 | |
- | - | - | - | - | - | - | - | - | - |
Roots pumping unitRP 15C VARIO |
MD 4C | 0.2 | 0.4 | 15 | 15 | |
- | - | - | - | - | - | - | |
- | - |
Roots pumping unitRP 22C VARIO |
MD 12C | 0.2 | 0.9 | 22 | 22 | |
- | - | - | - | - | - | - | |
- | - |
Roots pumping unitRP 35C VARIO |
MD 12C | 0.1 | 0.9 | 40 | 40 | |
- | - | - | - | - | - | - | |
- | - |
Chemistry diaphragm pumpMZ 2C EX |
- | 12 | 18 | 1.9 | - | |
|
- | - | - | - | - | - | - | - | - |
Chemistry diaphragm pumpMD 4C EX |
- | 3 | 10 | 3.7 | - | |
|
- | - | - | - | - | - | - | - | - |
Chemistry diaphragm pumpMV 10C EX |
- | 2 | 10 | 8.1 | - | |
|
- | - | - | - | - | - | - | - | - |
Chemistry vacuum systemMZ 2C EX
|
MZ 2C EX | 12 | 18 | 1.9 | - | |
|
- | |
|
- | - | - | - | - | - |
Chemistry vacuum systemMD 4C EX
|
MD 4C EX | 3 | 10 | 3.7 | - | |
|
- | |
|
- | - | - | - | - | - |
Vacuubrand Pump
Vacuubrand Rotary vane pumps and pumping units, chemistry-HYBRIDTM pumps
Rotary vane pumps are used whenever it is necessary to have a process vacuum of up to 10-3 mbar. VACUUBRAND rotary vane pumps are high-performance, yet compact, and can be equipped with an extensive line of VACUUBRAND accessories. They have an innovative lubrication system with a built-in oil pump and have a large oil volume. This extends oil change and service intervals and protects the pump at start-up. The effective gas ballast feature, with its high-flow gas ballast, provides high vapor pumping capability for water and solvents. VACUUBRAND rotary vane pumps´ volume flow rate is specified at atmospheric pressure, as is customary with PNEUROP®. For process effiency, however, the high volume flow rate of VACUUBRAND pumps under process conditions, as well as a consistently high volume flow rate over a wide pressure range, is the key to your satisfaction in real-world application. After switch-off the aggregate is vacuum-sealed to protect your application from undesired venting and oil back flow.
- constriction-free vapor pathway allows high volume flow rates, even when close to the ultimate vacuum
- high tolerance for water and solvent vapors, because of the high-volume gas ballast
- quiet running and excellent ultimate vacuum, even with gas ballast
- active corrosion protection: Oil cycle closes vacuum-tight against the intake of corrosive gases and oil impurities into the reservoir when shut down
- new design lubrication circuit, and large usable oil volume provides extended oil change and service intervals
- compact design, low weight and easy service with telescopic design
Product comparison
|
|
|
|
|
|
 |
|
|
 |
 |
 |
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
||||||||||
Rotary vane pumpRE 2.5 |
- | 3 x 10-1 | 8 x 10-1 | 2.3 | 2.8 | - | |
- | - | - | - | - | - |
Rotary vane pumpRZ 2.5 |
- | 2 x 10-3 | 1 x 10-2 | 2.3 | 2.8 | - | |
- | - | - | - | - | - |
Rotary-vane pumping unitPC 3 / RZ 2.5 |
RZ 2.5 | 2 x 10-3 | 1 x 10-2 | 2.3 | 2.8 | - | |
- | - | |
|
|
- |
Rotary vane pumpRE 6 |
- | 1 x 10-1 | 6 x 10-1 | 5.7 | 6.8 | - | |
- | - | - | - | - | - |
Rotary vane pumpRZ 6 |
- | 2 x 10-3 | 1 x 10-2 | 5.7 | 6.8 | - | |
- | - | - | - | - | - |
Rotary-vane pumping unitPC 3 / RZ 6 |
RZ 6 | 2 x 10-3 | 1 x 10-2 | 5.7 | 6.8 | - | |
- | - | |
|
|
- |
Rotary vane pumpRE 9 |
- | 1 x 10-1 | 6 x 10-1 | 8.9 | 10.2 | - | |
- | - | - | - | - | - |
Rotary vane pumpRZ 9 |
- | 2 x 10-3 | 1 x 10-2 | 8.9 | 10.2 | - | |
- | - | - | - | - | - |
Rotary-vane pumping unitPC 3 / RZ 9 |
RZ 9 | 2 x 10-3 | 1 x 10-2 | 8.9 | 10.2 | - | |
- | - | |
|
|
- |
Rotary vane pumpRE 16 |
- | 1 x 10-1 | 6 x 10-1 | 16.6 | 19.1 | - | |
- | - | - | - | - | - |
Rotary vane pumpRZ 16 |
- | 2 x 10-3 | 1 x 10-2 | 16.6 | 19.1 | - | |
- | - | - | - | - | - |
Rotary-vane pumping unitPC 3 / RZ 16 |
RZ 16 | 2 x 10-3 | 1 x 10-2 | 16.6 | 19.1 | - | |
- | - | |
|
|
- |
Chemistry-HYBRID™ pumpRC 6 |
- | 2 x 10-3 | 1 x 10-2 | 5.9 | 6.9 | |
|
- | - | |
- | - | - |
Chemistry pumping unitPC 8 / RC 6 |
RC 6 | 2 x 10-3 | 1 x 10-2 | 5.9 | 6.9 | |
|
- | - | |
- | - | |
Eppendorf-Micro-pippets-Digital-Burrets
Eppendorf-Micro-pippets-Digital-Burrets
Comfortable, high precision pipetting is the result of perfect teamwork between pipette and tip. Why not place your trust in the unbeatable team of Eppendorf Research® Pipettes and the new epTIPS pipette tips? Now available as epResearch3 Pack at a special price that’s too good to miss!
Your epResearch3 Pack includes:
Option 1:
- 3 pipettes Eppendorf Research® PhysioCare Concept (0,5-10 µl, 10-100 µl, 100-1.000 µl)
- 3 x 96 epTIPS (max. capacity 20 µl, 200 µl and 1.000 µl) in refillable epTIPS Boxes
- 3 Pipette Holders
- 1 x SOP
- 1 x Pipette Pen!
Option 2:
- 3 pipettes Eppendorf Research® PhysioCare Concept (2-20 µl, 20-200 µl, 100-1.000 µl)
- 3 x 96 epTIPS (max. capacity 200 µl and 1.000 µl) in refillable epTIPS Boxes
- 3 Pipette Holders
- 1 x SOP
- 1 x Pipette Pen!
Kata Kunci Banyak Dicari :
- harga mikropipet eppendorf#spf=1
- clininpipet ependof distributir
- harga pipet dispenser
Micro-Centrifuge-CL-17-Thermo-Scientific
- Exceptional acceleration up to 21,000 x g in 12 seconds
- Refrigerated versions offer cooling in just 9 minutes
- ClickSeal* biocontainment rotor lid “clicks” in place, ensuring securely contained samples
- New PPSU lids have improved strength and chemical resistance
- Intuitive controls and easy to read display simplifies operation
- Sleek, space-saving footprint
- Rugged design for years of dependable service
- Easy to clean and maintain
- Quite performance provides safe, stress free environment
- 24 x 1.5/2.0mL Rotor with ClickSeal Biocontainment Lid certified by CAMR
- 36 x 0.5mL rotor with screw-on lid
- Dual Row rotor 18 x 2.0 /0.5mL with screw-on lid
- PCR 8 x 8 rotor with screw-on lid
- PCR 4 x 8 rotor with ClickSeal biocontainment lid
- Hematocrit Rotor
- Choice of two RCF options (17,000 x g/21,100 x g)
- Refrigerated models (17R, 21R) offer temperature control from -9° to +40°C
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Spectrophotometer-UV-Visible
- Personalize your home screen for easy navigation and convenience
- Workbook tools save time and ensure accurate results
- CUE scripting allows creation of customized interface and simplified workflow
Optimized Engineering Delivers Ultimate Performance
- Double-beam geometry with 1nm spectral bandwidth for precision measurements
- Application Focused Beam Geometry (AFBG) technology enables the best performance from microcells, solid samples, and fiber optic probes
- Xenon flash lamp requires no warm-up time allowing instant measurements
- Electronic triggering provides the highest level of accuracy for rapid-mixing kinetics measurements
- Precision monochromator drive delivers fast scanning data collection and wavelength accuracy
Powerful Convenience at your Fingertips
- Color, touch screen provides instrument control using built-in computer
- Integrated keypad allows communication with INSIGHT software
- Choice of Local or PC configurations provides flexibility and convenience
- Wide accessory selection with various temperature control options, sample changers, sippers and solid sampling devices complete your analysis
- Choice of Peltier Single Cell Holder or a Smart 8-Cell Peltier system for temperature control and sample monitoring from 0° to 100 °C
- Easy software integration gives you complete control of your measurements
Assurance of System Performance
- The Thermo Scientific UV Validator package provides support for system qualification and validation activities
- Documentation facilitates compliance of your system with the requirements of FDA,GxP, ISO 9001:2000 and ISPE 2001 guidelines and regulations
- Mercury Lamp accessory is available to perform instrument calibration
- Thermo Scientific INSIGHT security software provides complete tools to meet 21 CFR Part 11 requirements
| Specifications | ||
|---|---|---|
| Model | Evolution 201 | Evolution 220 |
| Spectral Bandwidth | 1nm | Variable: 1nm; 2nm
AFBG Microcell optimized AFBG Fiber optic optimized AFBG Materials optimized |
| Optical Design | Double Beam with sample and reference cuvet positions; Czerny-Turner Monochromator | |
| Light Source | Xenon flash lamp, 3-year warranty (Typical lifetime: 5 years) | |
| Detector | Dual Silicon Photodiodes | |
| Wavelength | ||
| Range | 190 to 1100nm | |
| Accuracy | ±0.8nm (full range 190 to 1100nm)
± (546.11nm mercury line) |
|
| Scan Speed | <1 to 6000nm/min.; variable | |
| Photometric | ||
| Range | >3.5A | |
| Accuracy | 0.5A: ±0.0004A
1A: ±0.006A 2A: ±0.010A Measured at 440nm using neutral density filters traceable to NIST*/NLPL |
|
| Noise | 0A: <=0.00015 A
1A: <=0.00050 A 2A: <=0.00080 A 260nm, 1nm SBW, RMS |
|
| Dimensions | 24.3 x 19.1 x 11 in. (62.2 x 48.6 x 27.9mm) | |
| Weight | 31.7 lb. (14.4kg) | |
| Electrical Requirements | 90 to 240VAC 47 – 63Hz, Single Fuse (110V vs. 220V) | |
| Cat. No. | Description |
|---|---|
| 840-210800 | Evolution 201 PC |
| 840-210700 | Evolution 201 LC |
| 840-210600 | Evolution 220 PC |
| 840-210500 | Evolution 220 LC |

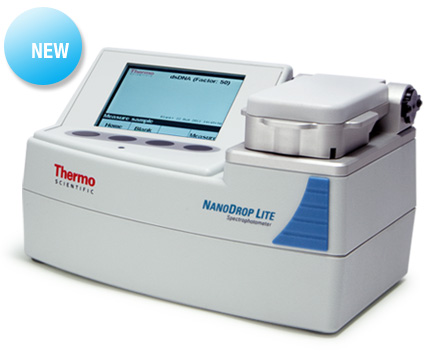

spectrophotometer-nano drop liteThermo scientific
NanoDrop Lite
Spectrophotometer
Simple Analysis. Compact Delivery.
The NanoDrop Lite is a standalone microvolume instrument which uses our patented sample-retention system to deliver the same exceptional accuracy and reproducibility as other NanoDrop instruments. Its compact design, with built-in controls and software, makes the NanoDrop Lite small enough to fit on any benchtop, but powerful enough to deliver rapid, accurate and reproducible measurements.
The NanoDrop Lite is designed for labs that want the trusted NanoDrop technology, but don’t need the full performance or spectral data of the NanoDrop 2000|2000c or NanoDrop 8000. It is also ideal for labs that already have a NanoDrop instrument or that share a NanoDrop instrument with other labs.
Basic microvolume measurements with powerful local control:
- Employs the unique NanoDrop microvolume sampling technology for 1 µL nucleic acid and protein samples
- Measure nucleic acid concentration at 260 nm and purity using the 260/280 ratio
- Measure purified protein concentration at 280 nm
- Delivers the accuracy and reproducibility expected from NanoDrop instruments
- Uses built-in controls and software — no computer required
- Offers an optional printer for cryogenic labels
Specifications
| Instrument Type | Spectrophotometer | |
| Minimum Sample Size | 1 µl | |
| Sample Number | 1 | |
| Path Length | 0.5 mm | |
| Light Source(s) | Light emitting diodes | |
| Detector Type | Silicon photodiode | |
| Wavelength Range | 260 and 280 nm | |
| Spectral Resolution | ≤ 8.0 nm | |
| Absorbance Accuracy | 3% (at 1.05 Abs at 260 nm) | |
| Absorbance Range (10 mm equivalent) | 0 – 30 Abs | |
| Lower Limit of Detection | 4 ng/µl (dsDNA) 0.12 mg/ml (BSA) |
|
| Maximum Concentration | 1,500 ng/µl (dsDNA) 45 mg/ml (BSA) |
|
| Measurement Time | < 5 seconds | |
| Footprint | 16 x 11.5 cm | |
| Weight | 0.8 kg | |
| Sample Pedestal Material of Construction | 303 stainless steel and quartz fiber | |
| Operating Voltage | 6 V (DC) | |
| Operating Power Consumption | 18 W | |
| Standby Power Consumption | ≤ 2.5 W | |
| Software Compatibility | Local control only |
Kata Kunci Banyak Dicari :
- alat lab nanodrop

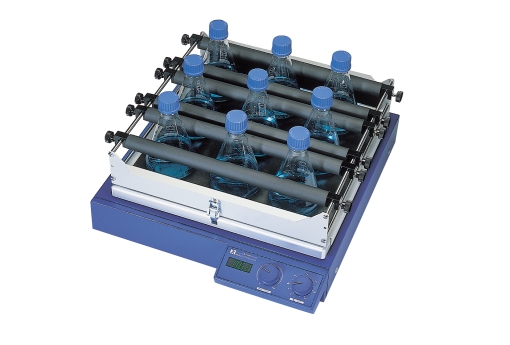

Shakers IKAKS 501 Digital
Shakers IKA KS 501 Digital
Low profile laboratory shaker with a pleasant design, large mounting surface and load capacity of up to 15 kg.
- Infinitely variable speed control of 0 – 300 rpm
- Digital display
- Orbital diameter 30 mm
- Ideal for vessels with a volume of more than 250 ml, e.g. round flasks, Erlenmeyer flasks, culture flasks and culture bottles
- Ideal for biological and microbiological growth tests, for the production of stock solutions
- Guaranteed continuous operation (endless) even under extreme loads
- Includes timer
- Attachments are not included, please order separately
| Type of movement | orbital |
| Shaker diameter | 30 mm |
| Permissible shaking weight (incl. attachment) | 15 kg |
| Motor rating input | 70 W |
| Motor rating output | 19 W |
| Permissible ON time | 100 % |
| Speed range | 0 – 300 rpm |
| Speed display | LED |
| Timer | yes |
| Timer display | scale |
| Time setting range | 1 – 56 min |
| Operating mode | timer and continuous operation |
| Shaking table lock | no |
| Dimensions (W x H x D) | 505 x 120 x 585 mm |
| Weight | 26 kg |
| Permissible ambient temperature | 5 – 50 °C |
| Permissible relative moisture | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | no |
| Analog output | no |
| Voltage | 230 / 115 / 100 V |
| Frequency | 50/60 Hz |
| Power input | 74 W |
Shakers IKA KS 501 Digital
Shakres IKA KS 501 digital
Low profile laboratory shaker with a pleasant design, large mounting surface and load capacity of up to 15 kg.
- Infinitely variable speed control of 0 – 300 rpm
- Digital display
- Orbital diameter 30 mm
- Ideal for vessels with a volume of more than 250 ml, e.g. round flasks, Erlenmeyer flasks, culture flasks and culture bottles
- Ideal for biological and microbiological growth tests, for the production of stock solutions
- Guaranteed continuous operation (endless) even under extreme loads
- Includes timer
- Attachments are not included, please order separately
| Type of movement | orbital |
| Shaker diameter | 30 mm |
| Permissible shaking weight (incl. attachment) | 15 kg |
| Motor rating input | 70 W |
| Motor rating output | 19 W |
| Permissible ON time | 100 % |
| Speed range | 0 – 300 rpm |
| Speed display | LED |
| Timer | yes |
| Timer display | scale |
| Time setting range | 1 – 56 min |
| Operating mode | timer and continuous operation |
| Shaking table lock | no |
| Dimensions (W x H x D) | 505 x 120 x 585 mm |
| Weight | 26 kg |
| Permissible ambient temperature | 5 – 50 °C |
| Permissible relative moisture | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | no |
| Analog output | no |
| Voltage | 230 / 115 / 100 V |
| Frequency | 50/60 Hz |
| Power input | 74 W |
