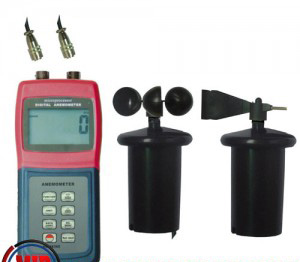

MICROPROCESSOR AM4836C Anemometer

A. Air Velocity: M/ s, km/ h, ft/ min, knots
B. Air Flow: CMM, CFM
C. Beaufort Scale: Force
D. Wave Height: M
E. Direction: ° From the North direction
F. Temp: º C or º F

Data hold : Maximum value
Can memorize 24 groups of obtained data and be able to recall from the meter at anytime
Sampling rate : Reading per second approx.
Air velocity / flow sensor : 3-cup probe
Direction probe : Low friction probe
Temperature sensor : Precision thermistor
Automatic power off : 0 – 9 minutes set by users
Power Supply : 4 x 1.5 AAA
Dimensions of main unit : 156 x 67 x 28 mm ( 6.14′ x 2.64 x 1.1′ inch)
Dimensions of Velocity sensor : 65 x 65 x 115 mm ( 2.56 x 2.56 x 4.53′ inch)
Dimensions of Direction sensor : 86 x 69 x 115 mm ( 3.39 x 2.72 x 4.53′ inch

Air Velocity : 0.4 ~ 45.0 m/ s ( km/ hr, ft/ min, knots) ; ± ( 2% + 0.1m/ s)
CMM ( cubic meters/ min) : 0 – 9999 m3/ min;
CFM ( cubic ft/ min) : 0 ~ 9999 ft3/ min
Beaufort scale : 0 ~ 12
Direction : 0 ~ 360°
Wave Height : 0~ 14
Air Temperature : 32º C – 140º C
