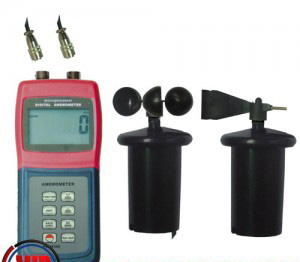

B. Air Flow: CMM, CFM
C. Beaufort Scale: Force
D. Wave Height: M
E. Direction: ° From the North direction
F. Temp: º C or º F
Data hold : Maximum value
Can memorize 24 groups of obtained data and be able to recall from the meter at anytime
Sampling rate : Reading per second approx.
Air velocity / flow sensor : 3-cup probe
Direction probe : Low friction probe
Temperature sensor : Precision thermistor
Automatic power off : 0 – 9 minutes set by users
Power Supply : 4 x 1.5 AAA
Dimensions of main unit : 156 x 67 x 28 mm ( 6.14′ x 2.64 x 1.1′ inch)
Dimensions of Velocity sensor : 65 x 65 x 115 mm ( 2.56 x 2.56 x 4.53′ inch)
Dimensions of Direction sensor : 86 x 69 x 115 mm ( 3.39 x 2.72 x 4.53′ inch
Air Velocity : 0.4 ~ 45.0 m/ s ( km/ hr, ft/ min, knots) ; ± ( 2% + 0.1m/ s)
CMM ( cubic meters/ min) : 0 – 9999 m3/ min;
CFM ( cubic ft/ min) : 0 ~ 9999 ft3/ min
Beaufort scale : 0 ~ 12
Direction : 0 ~ 360°
Wave Height : 0~ 14
Air Temperature : 32º C – 140º C

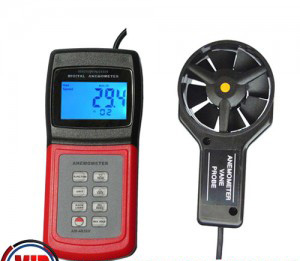

Multi-functions Thermo Anemometer with º C & º FWind Speed or Air Velocity : 0.40 – 45.0 m/ s ( km/ hr, ft/ min, knots)
Accuracy : ± ( 2% + 0.1 m/ s)
Wind or Air Flow
CMM ( cubic meters / min) : 0 – 9999 m3/ min
CFM ( cubic ft/ min) : 0 – 9999 ft3 / mi
Wind or Beaufort Scale : 0 – 12 level
Wave Height : 0 – 14m
Wind or Air Temperature : 0 to 60 º C ( 32 to 140 º F)
Data Hold : Maximum Value
Memory : 24 group data
Automatic Power Off : 0-9 minutes set by users
Display : 0.5″ ( or 13mm) 4-digit LCD
Kata Kunci Banyak Dicari :
- Anemometer digital dekko

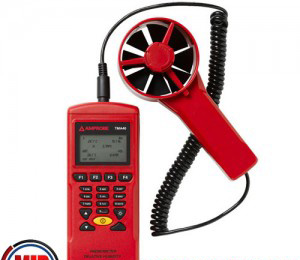

The Amprobe TMA40A provides three measurements in one: Air Velocity or volume, Relative Humidity and Temperature. With three ways to view your measurement results. Choose between single point measurement, multiple points up to 99, or the added feature of data logging up to 2400 data points. User sets the measurement interval time from 1 to 200 seconds. The TMA40A has a flexible cord to position vane where you need to measure. For accurate CFM results, the user simply inputs the area of the air source.
Features of the Amprobe TMA40-A are:
Three measurements in one meter
Air velocity ( FPM) or air volume ( CFM) , RH, Temperature
Large digital display with Backlight
Flexible measurement vane for accessing difficult areas
RS232 Output for data result usage
Measure multiple points up to 99
Data Logging of Measurements, 2400 data points
Set display results for Metric or English
With USB

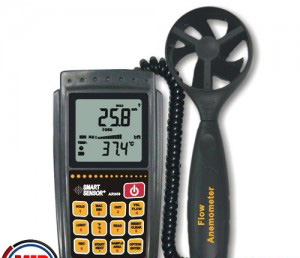

General Features & Specification :
- Measuring Range: 0ºC~45ºC
- Wind Speed Measuring Range: 0.3~45m/s
- Wind volume Range: 0~9999m3/s
- Accuracy of Wind speed: ±3%±1dgts
- Wind Speed Unit Selection: M/s, Ft/min, Knots, Km/hr, Mph
- Resolution: 0.1m/s 0.2ºC
- Air Velocity/Air Flow Selection: √
- ºC/ºF Selection: √
- Auto /Manual Power Off: √
- Back Light Display: √
- Max/Min wind speed measuring: √
- Average And current wind speed: √
- Data hold function: √
- USB Transmission: √
- Air Flow Measuring Function: √
Packing Information:
- Power 1.5V*4 Battery
- Product Net Weight: 240g
- Product Size: 170*160*49mm
- Packing Gift box + PP box

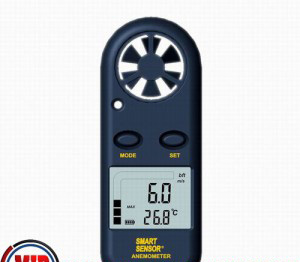

* Temperature measure range: -10~45C (accuracy: ±2C)* Air velocity measure range: 0.3~30m/s (accuracy: ±3%±0.1dgts)
* Air velocity unit: M/s, ft/min, knots, km/hr, mph
* Resolution: 0.1m/s 0.2C
* Large LCD with backlight
* Max/Min/Avg/current reading function
* Conversion of Celsius/Fahrenheit temperature
* Auto power shut off
* Power: CR2032 3.0V
* Net weight: 52.1g
* Size: 105x40x15mm
* Packing style: Blister
* Q’ty per carton: 80pcs
* Standard carton size: 38.0×38.0×43.8cm ]]>
