BARIGO Model 39 Altimeter

admin — Thu, 07 Feb 2013 06:59:39 +0000

Analogue 6000m altimeter
Jeweled movement altimeter 6000m or 18000ft, 1 rotation per 1000 m/3000ft with secondary n x 1000s window, with barometer , black metal case
Ø 65 mm, white dial Ø 60 mm,
weight 150 gr.
with leather case and thong.

TECHNICAL DATA

Measuring range ………………. 0 to 6000m/18000ft
1 turn of needle………………… 1000m/3000ft
Indication of 1000s on secondary dial window
Scale division…………………… 10m / 20ft
Movement……………………….. 16 Jewels
Pressure Measurement………..970 to 1050 hPa / 28.7 to 31.3 inHg
Measuring Deviation……………0.25% max
Temperature Compensation….max 0.25m/C

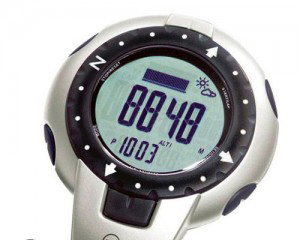

HIGHGEAR Digital Altimeter

admin — Thu, 07 Feb 2013 06:57:39 +0000

Altimeter
Working Range: – 1312 to + 29, 520 feet ( – 400 to + 9, 000 meters)
Resolution 1m / 1f
Maximum Altitude in Feet or Meters

Thermometer
Operating Temperature: -5° Celsius to 50° Celsius ( 23° Fahrenheit to 122° Fahrenheit)
Working Range: -10° Celsius to 60° Celsius ( 14° Fahrenheit to 140° Fahrenheit)
Resolution: 0.1 ° Celsius / 0.2° Fahrenheit

Compass
with 360° Compass Bearing
Resolution of 1°
Rotating digital bezel in quarter cardinal points
Adjustable Declination
True North Setting

Barometer
Sea Level Pressure and Absolute Pressure Displays in inHG
Range 300 to 1100mbar/ hPa or ( 8.86 inHg to 32.48 inHg)
Resolution 1mbar/ hPa or 0.01InHg

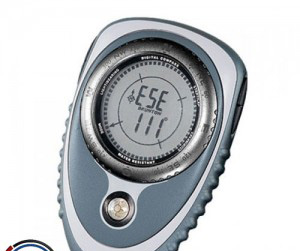

BRUNTON Nomad V2 Altimeter

admin — Thu, 07 Feb 2013 06:55:34 +0000

The new Nomad Pro is the ultimate weathercenter/ digital navigator. This digital dynamo offers weather information like altitude and barometric pressure. Add compass bearings, direction readings and declination adjustable to the mix and you’ ve got a powerful tool no larger than a traditional compass. You’ ll get up to the minute temperature readings, a time and date display and two daily alarms.
Features:
• Dual time/ date display with two daily alarms
• Uses one CR2032 3V lithium battery ( included)
• 3.5 ” x2.3 ” x0.7 ”
• Weight: 3.7 oz
• Backlit digital display
• Temperature in ° C or ° F
• Barometer with 0.02 inHg ( 1 mbar/ hpa) resolution
• Altimeter display with 1 ft/ m resolution
• 20 Altimeter memories
• Accumulated and max altitude
• Declination adjustable
• Forward bearing
• Bubble level for + / – 2° accuracy
• 1° resolution
• Dual time / date display
• One CR2032 3V lithium battery included

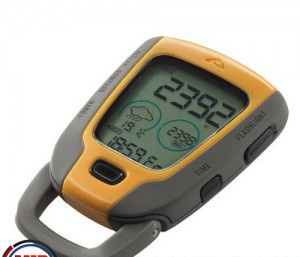

BARIGO Model 44 Altimeter

admin — Thu, 07 Feb 2013 05:11:13 +0000

Digital altimeter / compass / weatherstation
No. 44 is an altimeter with integrated compass and with a full weatherstation, air pressure reading, barchart for pressure changes and weather
forecast with symbols. In addition the instruments shows an altitude profile and allows to store the maximum/minimum heights as well as total ascent.
The device incorporates a clock with stop watch function. Case plastic, 60×75 mm, Display 35 mm, weight 45 g.

TECHNICAL DATA

Altimeter
…………..-2296 feet/-700m to 29,520 feet/9,000m
…………..graphical expression of changes
…………..units in feet or meters selectable
…………..20 memories with date, time and altitude reading

Barometer
…………..1 mbar/hPa resolution
…………..300mbar/hpa to 1100mbar/hpa
…………..Graphical expression of changes provided
…………..24 hours barometric data recall
…………..Sea level and Absolute pressure
…………..Weather forecast
…………..Temperature in F or C
Compass
…………..Electrionic
…………..16 cardinal points
…………..Bearing in degrees
…………..Declination correction
Time
…………..2 time modes selectable
…………..Presents day or week, day, hours, minutes, second, (year and month can be set)
…………..12/24 hour format
…………..Auto calender 2000-2049

Chonograph
…………..1/100th second resolution with working range up to 24 hours
…………..100 memories for lap/split times stored in a max of 30 runs

Alarm
…………..2 daily alarms
…………..Hourly chime

Other
…………..3 seconds light-up EL backlight
…………..water resistant to 10 meters / 33 feet
